6MH Series DIP8 Crystal Oscillator With Symmetry Of 40-60% High Frequency

Brand Name : SJK

Model Number : 6MF Series DIP14 Crystal Oscillator

Certification : SGS, RoHS, REACH

Place of Origin : China

MOQ : 500 pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30K pcs per Month

Delivery Time : 2~4weeks

Packaging Details : 1000pcs /Box

Type : 6MH DIP-8 Half-Size Crystal Oscillator

Frequency Range : 0.25~180MHz

Size : 12.7*12.7*5.3mm

Output : CMOS

Supply Voltage : 3.3V / 5.0V

Function : Tri-state

Contact Now

6MH Series DIP8 Crystal Oscillator with Symmetry of 40-60% for High Frequency and Stability Applications

Features:

All metal welded half-size (DIP-8) package, size with 12.7*12.7*5.3mm.
Tri-state function
Supply voltage: 3.3V /5.0V
Available frequency range: 0.25MHz To 180MHz
Low phase noise and jitter
Application for test equipments, Electronic instruments, Telecommunications, Avionics, Smart grid, etc
RoHS Compliant /Pb Free

Electronic Specifications:

Item	6MH Series DIP8 Crystal Oscillator
Output Type	CMOS
Output Load	15pF, or specify
Frequency Range	0.25MHz to 180MHz
Supply Voltage	3.3V / 5V
Frequency Stability (All Condition)	±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify
Current Consumption	45mA max.
Stand-by Current	20µA max.
Symmetry	40~60%
0 Level Output Voltage (V_OL)	0.1 Vcc max.
1 Level Output Voltage (V_OH)	0.9 Vcc min.
Rise Time /Fall Time	5.0ns max.
OE 0 Level Output Voltage (V_IL)	0.2 Vcc max.
OE 1 Level Output Voltage (V_IH)	0.8 Vcc min.
Start-up Time	5.0ms max.
Operating Temperature	-40°C To +85°C, or specify
Storage Temperature	-55°C To +125°C, or specify
Phase Jitter	1pS max.
Package Size	12.712.75.3mm

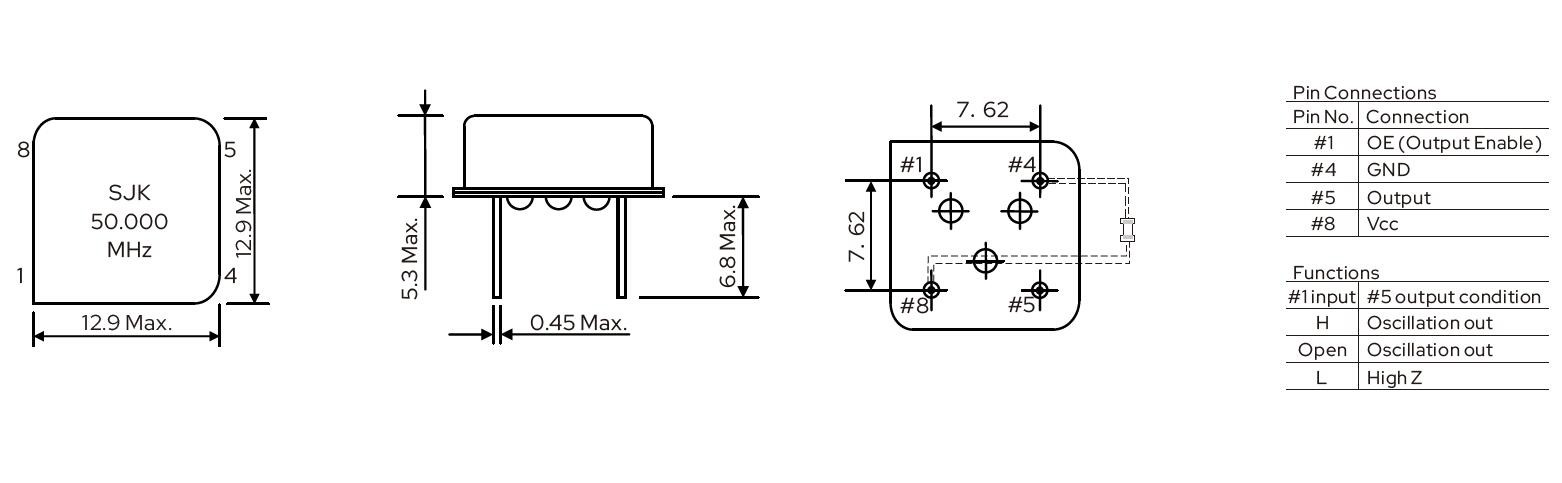

Dimensions:

6MH Series DIP8 Crystal Oscillator With Symmetry Of 40-60% High Frequency
